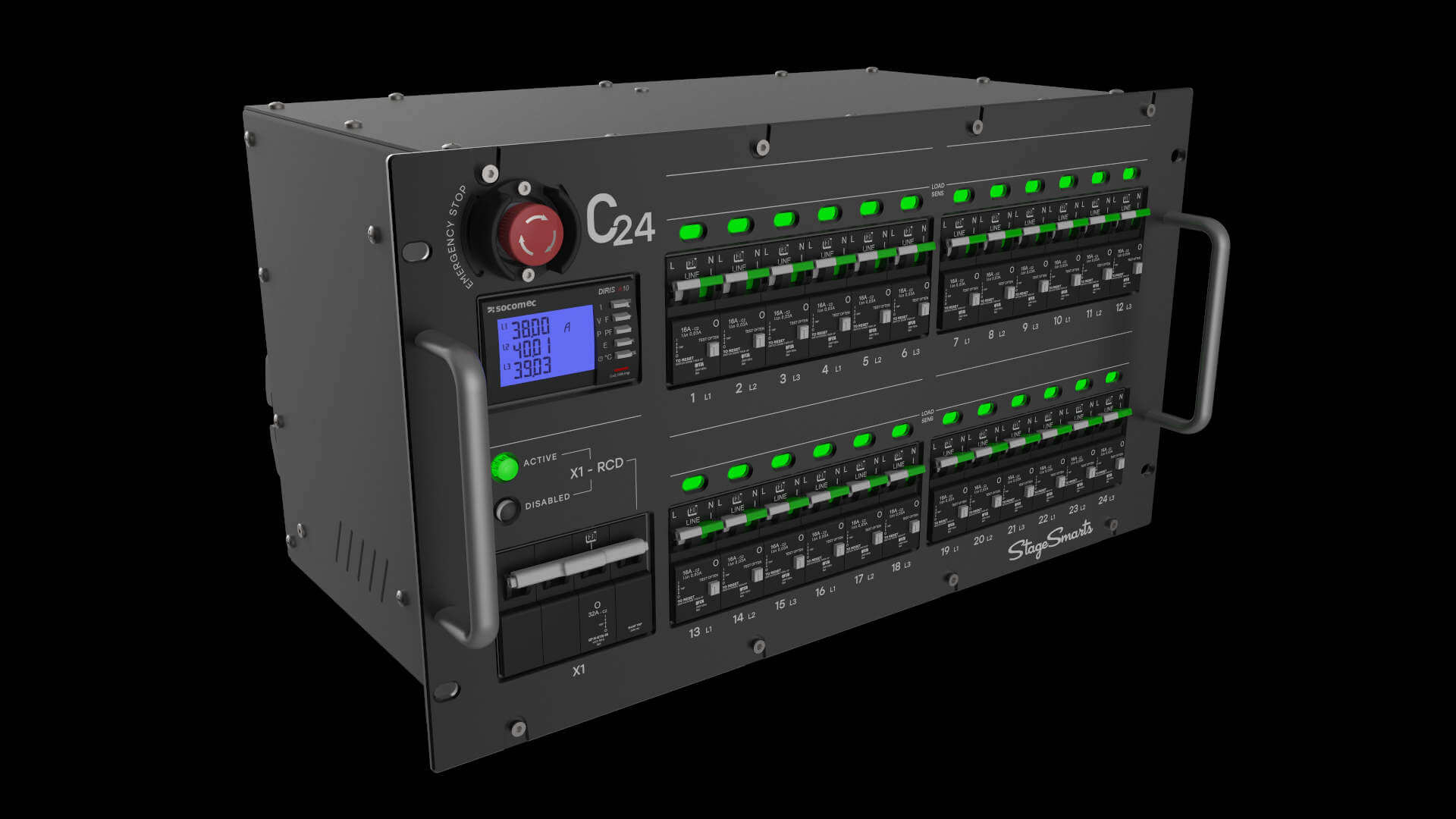

The C24 is a twenty-four-channel power distribution unit designed for the needs of the entertainment industry. Perfectly suited to power LED screens, intelligent lighting, audio-systems and all of the complex loads that can be a real challenge to handle without interruptions.

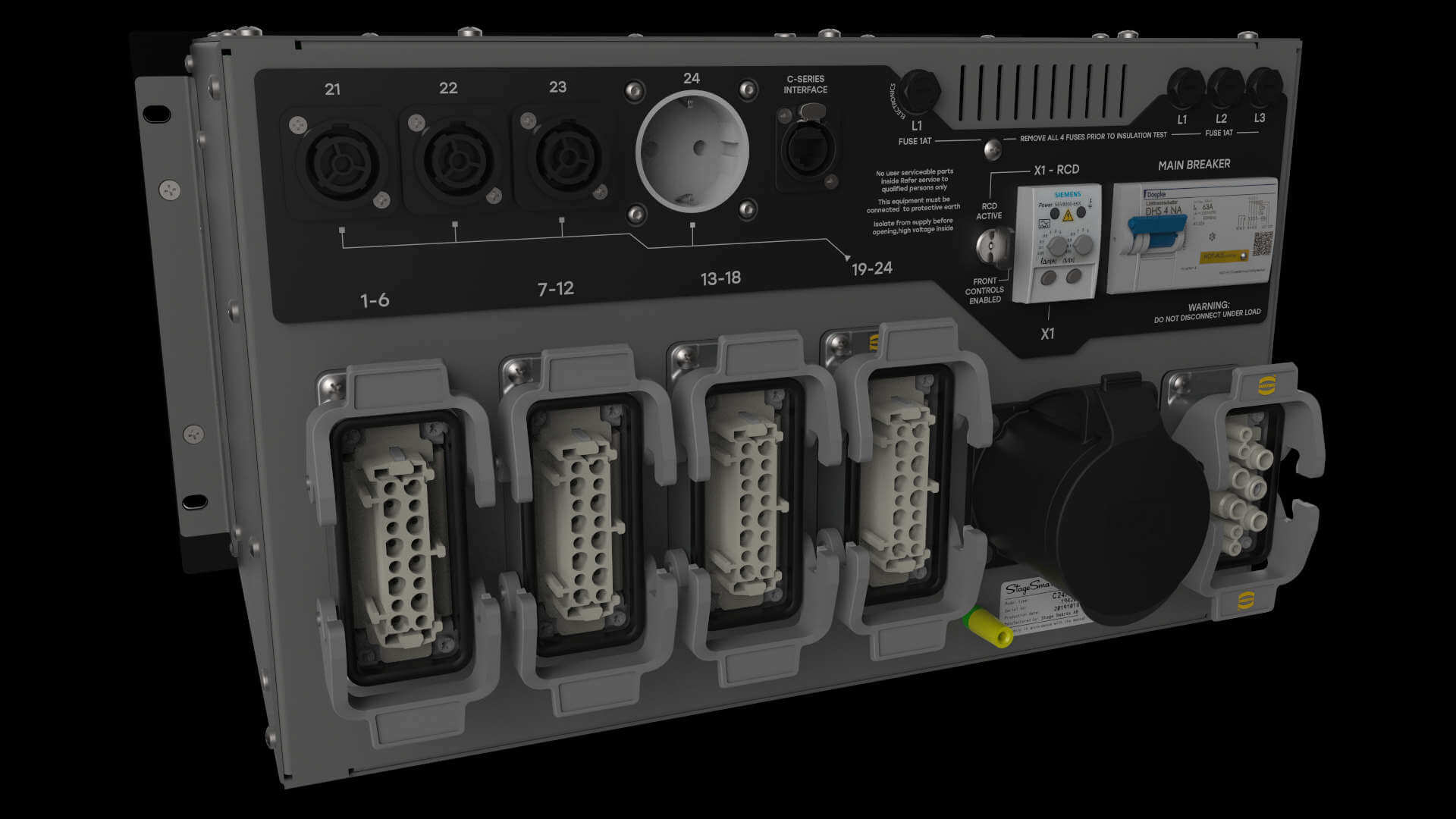

Included in a very compact form-factor are superior 2-pole hydraulic-magnetic breakers, individual earth protection per channel, loss of neutral protection, emergency stop and a disconnectable power-cable. Channel 21-23 are duplicated with True1 connectors and channel 24 are duplicated with a convenience socket that can be customized for different markets.

The 32A 3-phase output on the C24 has a 4-pole breaker with a separate adjustable residual current relay. Current and time can easily be optimized for any load condition and the RCD relay can be totally disabled with a 2-step operation. The status of the RCD is clearly visible on the front panel to avoid any uncertainties. The RCD disable function can be locked in any mode of operation.

The C24 has a unique real-time load monitoring system that clearly displays what’s going on for each individual channel. The LED indicator signals green under normal load conditions and signals red when an overload occurs. The load sensor can register loads as small as approximately 5 watts.

The optional webserver and processing card give the C24 the ability to be remotely monitored on any device with a web-browser on any standard network. Main meter measurement, breaker status, neutral error status, temperature can all be streamed in real time along with the current for all individual channels. Units, cables and channels can be named and color-coded, notifications can warn you if something is out of expected operation.

The C24 can be combined with other Stage Smarts products seamlessly and integrates perfectly into bigger systems.
